Double side 55 inch Free Standing LCD Display Digital Video
Advertising player
1, Product Feature :
1), Horizontal or vertical screen as you like, easy to install it
on the wall.
2), Support split screen, such as video, logo, date, week, news,
weather, subtitles area, etc, and all of them can be displayed on
the terminal at the same time.
3), Broadcast information by Internet, Remote control digital
signage group (Network).
4), Support LAN/WIFI/3G, USB disk (Network).
2, The Product Specification :
| Panel size | 55" |
| Display area(mm)/mode | 684(H) X 1214(V) |
| Maximum resolution | 1080 X 1920 |
| Display color | 16.7M |
| Pixel Pitch(mm) | 0.60(H)×0.60(V) |
| Brightness (nits) | 450cd/m2 |
| Contrast | 4000 : 1 |
| Visual angle | 178/178/178/178° |
| Response time | 8ms |
| Life(hrs) | 50,000(hrs) |
| Max Power Consumption | 160W |
| The machine body dimension(Lx W x H)mm | 1970x81x50 |
| Net weight | 65 kg/pcs |
| Gross weight | 85 kg/pcs |
| Outer Packing size | 2140x1080x240mm |
3, The working Principle of Android Version Advertising Player :

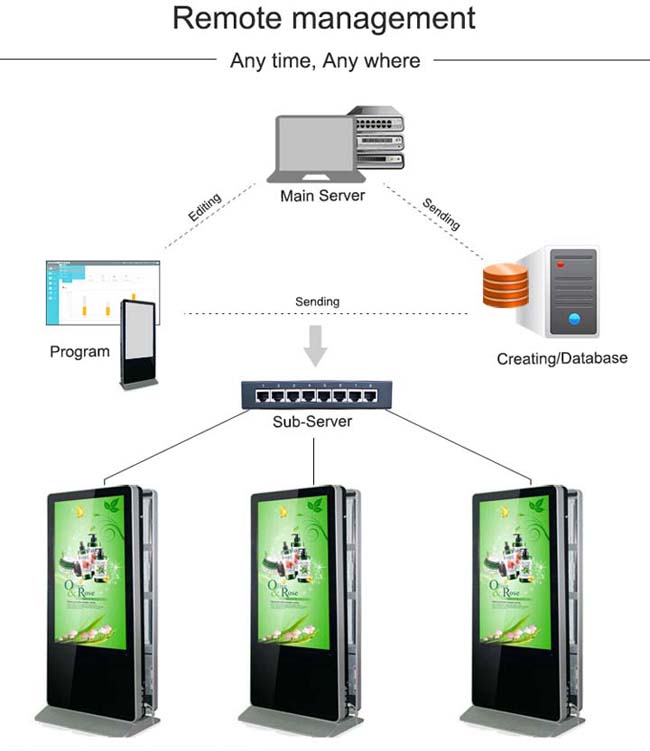

About network advertising player, we can offer you the complete
solution, not only the hardware but also the software system. The
machine with wifi/3g that can auto download content from internet
for customer advertising that changes over night to different ads
every day via network download. we also offer you our software
system to manage all the screens, this means that you can transfer
ad files to the screen remotely via wifi or 3g network from your
office. The screen will automatically play video and image contents
(entertaining and advertising contents), prepared by those content
manage from a server, which scheduled ordisplayed for playback
through the centralized software, distributed to lcd locations.
Each lcd has to be able to automatically detect new contents and
start playing them,without any man-work.
4, The specification of internal Android version advertising player
| CPU | ARM Cortex-A7,1.2 GHz, Quad core |
| Infrared remote control | Support |
| RAM | DDR3 1G byte |
| Internal Memory | NAND FLASH 8G |
| External Memory | SATA/USB/SD card/CF card |
| Resolution | 1080P(1080 X 1920) |
| Play mode | Circulation, timing, inter-cutting etc. |
| Network | Ethernet, wifi, 3G is optional |
| Video format | Compatible for SD card and CF card |
| SD card | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
| Picture format | BMP, JPEG, PNG, GIF |
| Networking protocol | TCP IP/PPPOE/ICMP/DHCP/DNS/FTP/HTTP |
| USB2.0 port | 2 x USB HOST external mouse and keyboard |
| Ethernet/wifi | 1 x RJ45, 10M/100M optional and 150Mbps 802.11n Wifi |
| Operating system | Android 4.4.2 |
| 1, Based on Android 4.4.2 system, all the android application Apk,
software automatic restoration supported. |
| 2, Real time management and controlling,browser,breakpoint upload
and download,multi-mode upload supported. |
| 3, Updating programs(video, pictures, texts, PPT etc.)through the
Internet supported. |
| 4, Auto Power on/off,electroic clock & date supported. |
| 5, Split screen and fixed template display setting supported. |
| 6, Setting IP address, working time and working day supported. |
| 7, 1080P Full HD programs display supported. |
| 8, WAN & LAN long-distance setting play/sleep/reboot etc.fuction
supported. |
| 9, Display contents cryptographic protection supported(selectable) |
| 10, Cable network,wifi,touch screen, inner camera setting
supported(selectable) |
| Notice : If you don't like our CMS software, you can also install
your own Apk in our machine, which means that you can integrate
other digital signage player or system software in display. |

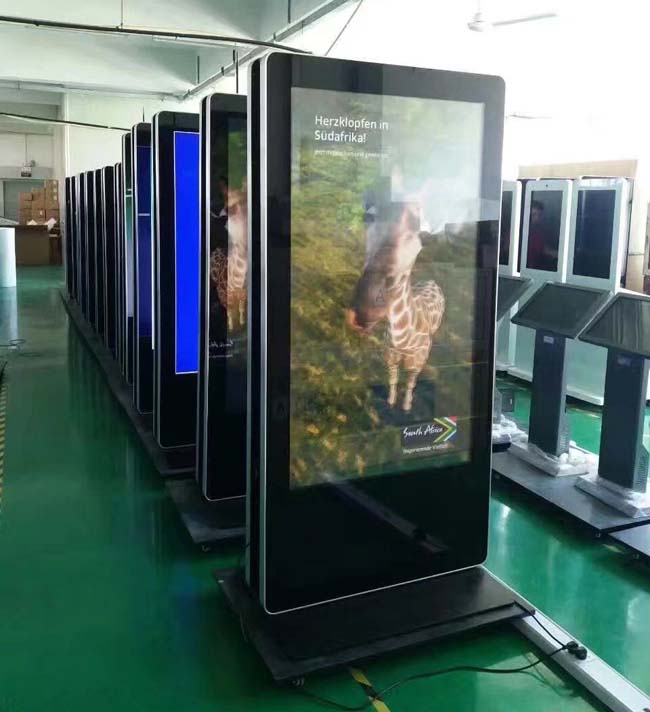

5, Physical Photo in stock :
If you have any other questions, please contact our salesman as
soon as possible.
