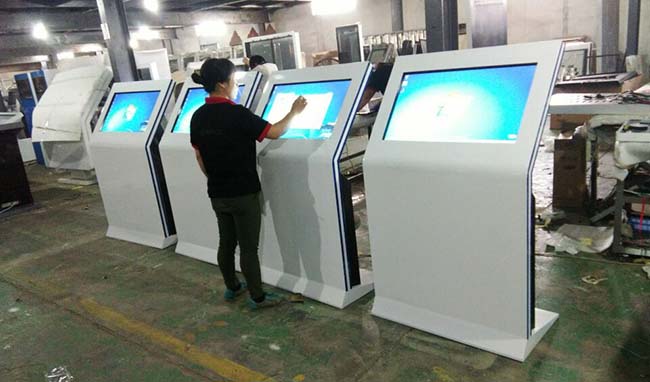

White Stand Alone Windows Touch Screen Kiosk For Large Scale
Shopping Malls
1, Main Features :
1), Industrial power supply & constant temperature cooling system,
support 7X24 hours continus playing sysstem.
2), Design as following is optional, Equipped with paper thermal
printers, magnetic stripe card, non-contact IC/ID card reader, a 64
bit or 16 bit structure and subsidiary metal keyboard and other
accessories equipment. Convenient for card expansion, password
input via keyboard, paper printing, etc.
3), Industrial power supply&constant temperature cooling
system, support 7x24 hours continus playing system.
2, The instruction for Touchscreen Panel
We usually default infrared touchscreen panel(2 points) with these
feature for our machine as follows :
1,Super Touch speed up to 300 dots/second(3ms) brings you an
experience of free touch .
2,Function of automatic detecting and correcting guarantees stable
working within 2 seconds once any equipment failure is caused by
strong interface.
3,Positioning precision is limited within 1mm thanks to adapting of
D precision promoting technology and Automatically compensate the
touch sensing at four edges, making touching at edges easier.
4, Supporting automatical adjusting of touch according to dust,
making less impact caused by dust.
| Touch Max Resolution | 4096 X 4096 |
| Transparency | >90% ; Up to 100% |
| Scanning Speed | >50s scans/S |
| Response speed | <12m |
| Touch type | Vertical Multiple Dot Touch screen |
| Touch precision | 0.625mm |
| Min Touch object | 5m |
| Touch intensity | Over 60,000,000 Single Point Touch |
| Operation System | Win7 or Win8.1,Win10 |
| Operating Voltage | DC, 5V 5% |
| Power Supply | Keyboard Serial Interface |
| Power | <1W(Current < 200mA) |
| Communication | RS-232 interface Port, USB port |
| Vandal-Proof | Steel Ball (Diameter 63.5mm 1040g weight) drop from 1040mm , No
break |
| Temperature Operating | below 41℃~70℃ |
| Temperature Storage | below 50℃~85℃ |
| Altitude | 3000m |
| Noise | None |
| Life Time | >10 year |
3, Product introduction :
This kind machine usually built-in PC, you can consider it as a
large computer with touchscreen function. Besides, you can install
your own software to get what you need. Actually, you can see this
kind product around you here and there. Some one special
application software installed on this kind machine, you can touch
the screen to query some information from web page or perform an
operation via software. As you seen, interactive Application
represent a major trend in the futures market.
We can provide advice and suggestions as well on content setup or
multi-touch software. We can also guide you to a solution that best
matches your environment,such as security,ruggedness,protability,
and lighting conditions.Touch screen technoloy draws attention of
audience and keeps them there while you delivery your message.
Responsive technology works wonders for engaging customers, and
giving you a better opportunity to reach them with your
advertising.Interactivity encourages sales, and our monitor's
durable design will ensure that your advertsing investment will
produce captivating results for years to come.
We will default I3 processor as standard configuration of internal
PC for touchscreen PC if you have no special configuration
requirements in your inquiry, besides, For this kind interactive
display equipment, high quality touchscreen panel is key to the
machine.
| Mainboard | Industrial motherboard HM67-3 |
| Processor | Intel Mobile 2nd i3-3220 |
| Ram | DDR3 4GB, 1066/1333MHz |
| Hard Disk | SSD 32GB |
| Power | Delta industrial PC 380W Power |
| Fan | Server adopt all-copper radiator double ball turbofan 4lines
adjusting speed |
| Input port | DVI*1,VGA*1,PS2,network port,Audio*3,on/off button, Rest Key, power switch,power input,USB 3.0 *4 |
| Plug and play | VESA DDC2B is available |
| The power dissipation and power | AC 90-264V 50/60 Hz・≤150W (max) |
| Touchscreen communication connection | USB |
| The connection of video signal input | DVI&VGA |
| Speaker | 10Wx2 |
| External wifi or 3G module | Optional |
| Operating temperature | Working temperature:0°C-40°C,storage temperature:-20°C-60°C,
humidity:20%-80% Relative humidity |
| Pre-installed system | OEM Win10 testing system version |
| Standard accessory | AC power line
User Manual
Warranty card,certification
“L”model hexagon spanner,6 retaining screws for base
Anti-theft lock
CD-ROM version instruction |
| Optional accessory | Wireless mini keyboard and mouse,Wireless network card |
| Others | Network card:onboard 8111EL gigabit chip,keyboard and mouse: PS/2 |
4, The Product Specification
| Panel size | 42" |
| Display area(mm)/mode | 930(H) X 523(V) |
| Maximum resolution | 1920 X 1080 |
| Display color | 16.7M |
| Pixel Pitch(mm) | 0.484(H)×0.484(V) |
| Brightness (nits) | 450cd/m2 |
| Contrast | 4000:1 |
| Visual angle | 178/178/178/178° |
| Response time | 8ms |
| Life(hrs) | 50,000(hrs) |
| Power Supply | AC 100~240V |
| Standy Power Consumption | 0.3W |
| Working Temperature | 0℃ ~ 40℃ |
| Storage Temperature | below 20℃~60℃ |
| Working Humidity | 10%~90% |
| Storage Humidity | 5%~90% |
If you have any other questions, please contact our salesman as
soon as possible.
