Digital Menu Boards Lcd Poster Display Commercial Avertising For
Restaurants
1, The working Principle of Standalone version lcd digital Menu
Board :
The PCB support Plug-and-Play function.You need save those ads
content in USB memory card firstly, and then, when you plug memory
card into the card slot, the screen will auto display video or
photo. When you need update ads content in original USB memory
card, you only need use USB copy by manual operation .
2, The specification of internal Standalone version media player
| Main Feature | Plug-and play, Auto loop play when power on |
| Chipset | MCU |
| RAM | 512 |
| OS | Linux |
| Network | No |
| Input card slot | 2 x USB2.0 |
| Storage Media | Default USB(SD card is optional) |
| Download Media | Auto copy from USB |
| External storage | Support 2G ~ 32GB |
| OSD language | Chinese / English |
| Display Effect | Support 720P/1080P Full HD video/Photo |
| Support Video Formats | AVI,MPEG1,MPEG2,MPEG4,VOB and DIVX(5.0/6.0) |
| Support Audio Formats | MP3 |
| Support Photo Formats | JPG |
| Support Doc formats | TXT |
| Audio Output | Built-in Power amplifer |
| Playback Mode | Repeat one/all, choose to repeat playback one file or all the files |
| Power Supply | AC 100~240V |
3, The reason that you need wall mounted lcd digital menu board as
follows:
Ad content can be created easily via digital signage which allow
advertisers to combine audio, video, image and interactivity by
themselves. Digital signage are used for many different purposes.
It helps to engage users and also helps advertisers to gain insight
in customer behaviors. Ad contents displayed on the signage is
presented in one of the following formats:
A, Text - Scrolling text. Either scrolling text, or text
dynamically updated via external newsfeed source.
B, Images - Scrolling images, usually in the format of digital
advertisement posters.
C, Video - Usually in the format of commercial TV advertisements.
4, The Product Specification :
| Panel size | 42" |
| Display area(mm)/mode | 927(H) X 521(V) |
| Maximum resolution | 1920 X 1080 |
| Display color | 16.7M |
| Pixel Pitch(mm) | 0.60(H)×0.60(V) |
| Brightness (nits) | 450cd/m2 |
| Contrast | 4000 : 1 |
| Visual angle | 178/178/178/178° |
| Response time | 8ms |
| Life(hrs) | 50,000(hrs) |
| Max Power Consumption | 75W |

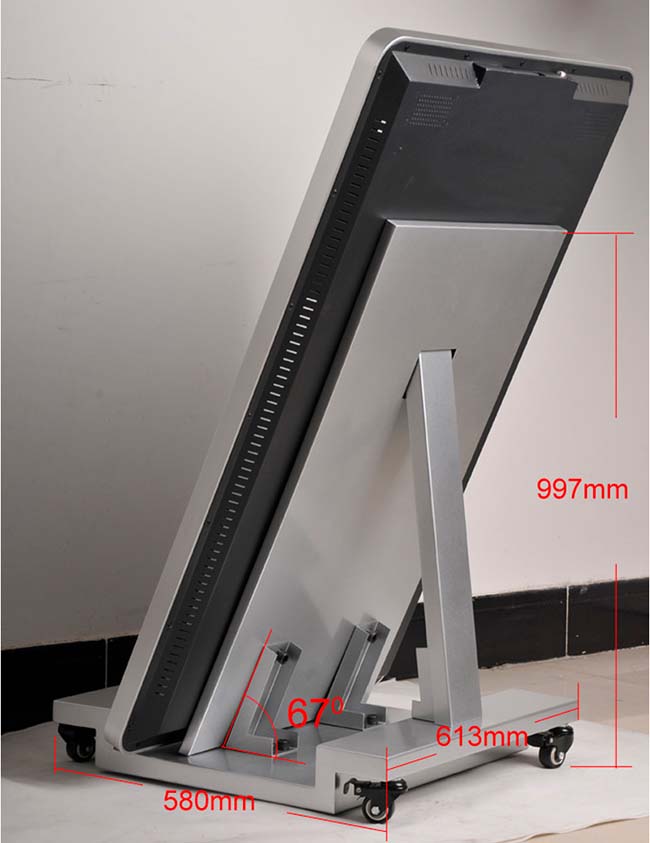

| The machine body dimension(Lx W x H)mm | 997x613x55 |
| Net weight | 27 kg/pcs |
| Gross weight | 45 kg/pcs |
| Outer Packing size | 1190x780x240mm |
If you have any other questions, please contact our salesman as
soon as possible.
