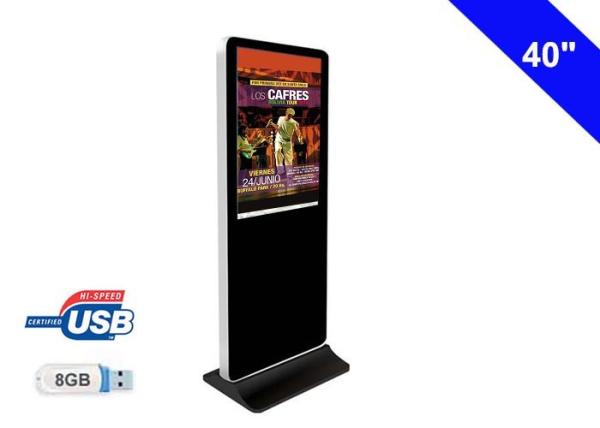

Indoor HD TFT 40 inch Free Standing lcd display supermarket stand
alone kiosk
1, Main Product Feature :
1), Support playing content update with USB.
2), Advertising spots and playlist function is optional.
3), Support formats : MPEG1, MPEG2, MP4, MP3, JPG.
4), Support 1080P Full HD Display.
5), Built-in mini speaker(2 X 10W).
6), with USB, HDMI(optional), it also can be a monitor.
7), Auto loop play when power on.
8), Support playing music and photo simultaneously.
9), Support 5 groups of automatic power on/off timer.
10), Built-in Clock and calendar function.
11), Capable of setting scrolling marquee.
2, The working Principle of Standalone version Free Standing LCD Advertising Display :
The PCB support Plug-and-Play function.You need save those ads
content in USB memory card firstly, and then, when you plug memory
card into the card slot, the screen will auto display video or
photo.When you need update ads content in original USB memory card,
you only need use USB copy by manual operation .
3, The specification of internal Standalone version media player
| Main Feature | Plug-and play, Auto loop play when power on |
| Chipset | MCU |
| RAM | 512 |
| OS | Linux |
| Network | No |
| Input card slot | 2 x USB2.0 |
| Storage Media | Default USB(SD card is optional) |
| External storage | Support 2G ~ 32GB |
| OSD language | Chinese / English |
| Display Effect | Support 720P/1080P Full HD video/Photo |
| Support Video Formats | AVI, MPEG1, MPEG2, MPEG4, VOB and DIVX(5.0/6.0) |
| Support Audio Formats | MP3 |
| Support Photo Formats | JPG |
| Support Doc formats | TXT |
| Audio Output | Built-in Power amplifer |
| Playback Mode | Repeat one/all, choose to repeat playback one file or all the files |
| Power Supply | AC 100~240V |
4, The Product introduction :
Free Standing LCD Display is a LCD Display with an standalone
integral media player, Media files are stored and played back from
USB or SD card. When you boot the machine up, it would auto read
those files (video/photo)from memory card simple one. Ad content
can be created easily via Advertising Display which allow
advertisers to combine audio, video, image and interactivity by
themselves. Advertising Display are used for many different
purposes. It helps to engage users and also helps advertisers to
gain insight in customer behaviors. Ad contents displayed on the
signage is presented in one of the following formats:
A, Text - Scrolling text. Either scrolling text, or text
dynamically updated via external newsfeed source.
B, Images - Scrolling images, usually in the format of digital
advertisement posters.
C, Video - Usually in the format of commercial TV advertisements.
5, The Product Specification :
| Panel size | 40" |
| Display area(mm)/mode | 518(H) X 925(V) |
| Maximum resolution | 1080 X 1920 |
| Display color | 16.7M |
| Pixel Pitch(mm) | 0.480(H)×0.480(V) |
| Brightness (nits) | 400cd/m2 |
| Contrast | 2000 : 1 |
| Visual angle | 178/178/178/178° |
| Response time | 8ms |
| Life(hrs) | 50,000(hrs) |
| Max Power Consumption | 72W |
| The machine body dimension(Lx W x H)mm | 1798x638x50 |
| Net weight | 54 kg/pcs |
| Gross weight | 88 kg/pcs |
| Outer Packing size | 1890x910x280mm |
6, Application :
| Business Organizations | Supermarket, Shopping malls, exclusive agency, chain shops,
large-scale sales, hotels, restaurants, travel agencies etc. |
| Financial Organizations | Banks, negotiable securities, funds, insurance companies, pawnshops |
| Non-profit Organizations | Telecommunications, post offices, hospital, schools |
| Public Places | Subway, Airports, stations, gas stations, toll station, bookstores,
parks,
exhibition halls, stadiums, museums, ticket agencies, HR market,
lottery centers ; |
| Real Estate Property | Apartments, offices, commercial buildings, property brokers; |
| Entertainments | Movie theaters, fitness halls, clubs, massage rooms, bars, cafes,
internet bars, beauty shops, golf course. |
