    75W Wall Mount LCD Display Plug In Play 178° Viewing Angle For Hospital

    Ask Lasest Price
    Brand Name : ZXT
    Model Number : FH-WU420C
    Certification : CE/ROHS/FCC
    Price : Negotiation
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 3000pcs per month
    Delivery Time : 5~10 working days after your confirmation
    • Product Details
    • Company Profile

    75W Wall Mount LCD Display Plug In Play 178° Viewing Angle For Hospital

    75W Wall Mount LCD Display Plug In Play 178° Viewing Angle For Hospital


    wall mounted lcd digital signage 42 inch is a LCD Display with an integral media player, Media files are stored and played back from USB or SD card. When you boot the machine up, it would auto read those files (video/photo)from memory card simple one.


    1, The reason that you need wall mounted lcd digital signage as follows:


    Ad content can be created easily via digital signage which allow advertisers to combine audio, video, image and interactivity by themselves. Digital signage are used for many different purposes. It helps to engage users and also helps advertisers to gain insight in customer behaviors. Ad contents displayed on the signage is presented in one of the following formats:


    A, Text - Scrolling text. Either scrolling text, or text dynamically updated via external newsfeed source.

    B, Images - Scrolling images, usually in the format of digital advertisement posters.

    C, Video - Usually in the format of commercial TV advertisements.


    2, The Product Specification :


    Panel size42"
    Display area(mm)/mode927(H) X 521(V)
    Maximum resolution1920 X 1080
    Display color16.7M
    Pixel Pitch(mm)0.60(H)×0.60(V)
    Brightness (nits)450cd/m2
    Contrast4000 : 1
    Visual angle178/178/178/178°
    Response time8ms
    Life(hrs)50,000(hrs)
    Max Power Consumption75W
    The machine body dimension(Lx W x H)mm1030x623x55
    Net weight27 kg/pcs
    Gross weight45 kg/pcs
    Outer Packing size1190x780x240mm

    3, Version Options:


    We offer you 2 version lcd digital signage for choice.


    A) Plug In Play Version (Standalone version)


    1, The working Principle of Standalone version lcd digital signage :


    The PCB support Plug-and-Play function.You need save those ads content in USB memory card firstly, and then, when you plug memory card into the card slot, the screen will auto display video or photo. When you need update ads content in original USB memory card, you only need use USB copy by manual operation .


    2, The specification of internal Standalone version media player


    Main FeaturePlug-and play, Auto loop play when power on
    ChipsetMCU
    RAM512
    OSLinux
    NetworkNo
    Input card slot2 x USB2.0
    Storage MediaDefault USB(SD card is optional)
    Download MediaAuto copy from USB
    External storageSupport 2G ~ 32GB
    OSD languageChinese / English
    Display EffectSupport 720P/1080P Full HD video/Photo
    Support Video FormatsAVI,MPEG1,MPEG2,MPEG4,VOB and DIVX(5.0/6.0)
    Support Audio FormatsMP3
    Support Photo FormatsJPG
    Support Doc formatsTXT
    Audio OutputBuilt-in Power amplifer
    Playback ModeRepeat one/all, choose to repeat playback one file or all the files
    Power SupplyAC 100~240V


    B) Internet Based Android version.


    1, The working Principle of Android Version lcd digital signage :

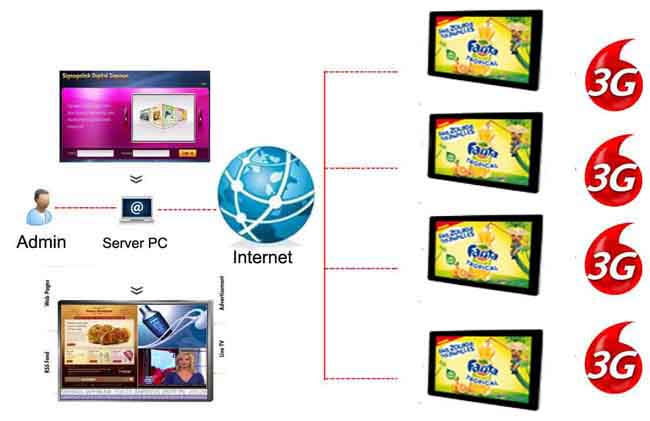

    About network lcd digital signage, we can offer you the complete solution, not only the hardware but also the software system. The machine with wifi/3g that can auto download content from internet for customer advertising that changes over night to different ads every day via network download. we also offer you our software system to manage all the screens, this means that you can transfer ad files to the screen remotely via wifi or 3g network from your office. The screen will automatically play video and image contents (entertaining and advertising contents), prepared by those content manage from a server, which scheduled ordisplayed for playback through the centralized software, distributed to lcd locations. Each lcd has to be able to automatically detect new contents and start playing them, without any man-work.


    2, The specification of internal Android version media player

    CPUARM Cortex-A7, 1.2 GHz, Dual core
    Infrared remote controlSupport
    RAMDDR3 1G byte
    Internal MemoryNAND FLASH 8G
    External MemorySATA/USB/SD card/CF card
    Resolution1080P(1080 X 1920)
    Play modeCirculation, timing, inter-cutting etc.
    NetworkEthernet, wifi, 3G is optional
    Video formatwmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc.
    SD cardCompatible for SD card and CF card
    Picture formatBMP, JPEG, PNG, GIF
    Networking protocolTCP IP/PPPOE/ICMP/DHCP/DNS/FTP/HTTP
    USB2.0 port2 x USB HOST external mouse and keyboard
    Ethernet/wifi1 x RJ45, 10M/100M optional and 150Mbps 802.11n Wifi
    Operating systemAndroid 4.4.2


    1, Based on Android 4.4.2 system, all the android application Apk, software automatic restoration supported.
    2, Real time management and controlling, browser, breakpoint upload and download, multi-mode upload supported.
    3, Updating programs(video,pictures,texts,PPT etc.)through the Internet supported.
    4, Auto Power on/off,electroic clock & date supported.

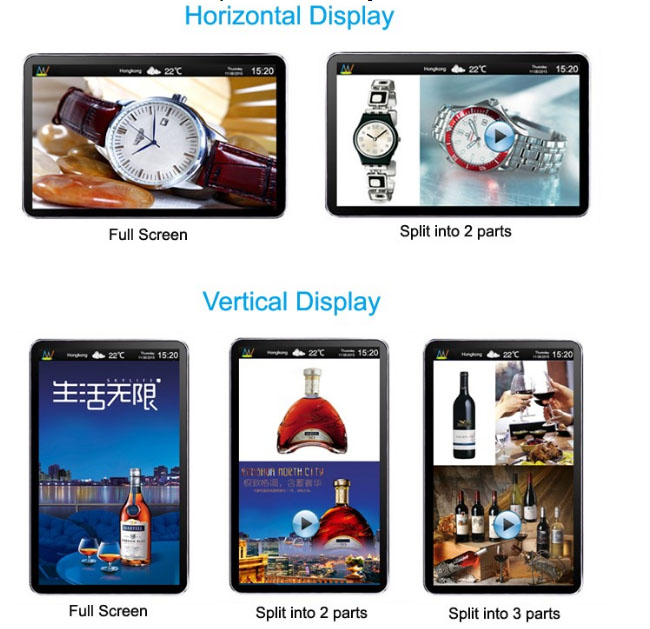

    5, Split screen and fixed template display setting supported.
    6, Setting IP address, working time and working day supported.
    7,1080P Full HD programs display supported.
    8, WAN & LAN long-distance setting play/sleep/reboot etc .fuction supported.
    9, Display contents cryptographic protection supported(selectable)
    10, Cable network, wifi, touch screen, inner camera setting supported(selectable)
    Notice : If you don't like our CMS software, you can also install your own Apk in our machine, which means that you can integrate other digital signage player or system software in display.



    4, The physical photo :



    If you have any other questions, please contact our salesman as soon as possible.
