Business Digital Signage Outdoor Displays , Floor Standing LCD Advertising Display

    Buy cheap Business Digital Signage Outdoor Displays , Floor Standing LCD Advertising Display from wholesalers

    Buy cheap Business Digital Signage Outdoor Displays , Floor Standing LCD Advertising Display from wholesalers
    • Buy cheap Business Digital Signage Outdoor Displays , Floor Standing LCD Advertising Display from wholesalers
    • Buy cheap Business Digital Signage Outdoor Displays , Floor Standing LCD Advertising Display from wholesalers
    • Buy cheap Business Digital Signage Outdoor Displays , Floor Standing LCD Advertising Display from wholesalers

    Business Digital Signage Outdoor Displays , Floor Standing LCD Advertising Display

    Ask Lasest Price
    Brand Name : ZXT
    Model Number : ZXT-OPK460A
    Certification : CE/Rohs/FCC
    Price : Negotiation
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 1000pcs per month
    Delivery Time : 5~10 working days after your confirmation
    • Product Details
    • Company Profile

    Business Digital Signage Outdoor Displays , Floor Standing LCD Advertising Display

    Business Digital Signage Outdoor Displays , Floor Standing LCD Advertising Display ​


    1, Product Description


    We will default I5 processor as standard configuration of internal PC for outdoor display if you have no special configuration requirements in your inquiry, besides, For this kind interactive display equipment, high quality touchscreen panel is key to the machine.


    MainboardIndustrial motherboard HM67-3
    ProcessorIntel i5 3590 3.3GHz, Dual core
    RamDDR3 4GB, 1066/1333MHz
    Hard Disk500G
    PowerDelta industrial PC 380W Power
    Fan

    Server adopt all-copper radiator double ball turbofan 4lines

    adjusting speed

    Input port

    DVI*1,VGA*1,PS2,network port,Audio*3,on/off button,

    Rest Key, power switch,power input,USB 3.0 *4

    Plug and playVESA DDC2B is available
    The power dissipation and powerAC 90-264V 50/60 Hz・≤150W (max)
    Touchscreen communication connectionUSB
    The connection of video signal inputDVI&VGA
    Speaker10Wx2
    External wifi or 3G moduleOptional
    Operating temperatureWorking temperature:0°C-40°C,storage temperature:-20°C-60°C, humidity:20%-80% Relative humidity
    Pre-installed systemOEM Win7 testing system version
    Standard accessoryAC power line
    User Manual
    Warranty card,certification
    “L”model hexagon spanner,6 retaining screws for base
    Anti-theft lock
    CD-ROM version instruction
    Optional accessoryWireless mini keyboard and mouse,Wireless network card
    OthersNetwork card:onboard 8111EL gigabit chip,keyboard and mouse: PS/2

    2, The Product Specification :


    Screen size46”
    Active area size (W x H)572X1018mm
    Aspect Ratio9 : 16
    Panel resolution (pixels)1080X1920 (Full HD)
    Luminance of white (Brightness)1000/1500/2000cd/m²
    Contrast ratio4000:1
    Response time5ms
    Colour Range16.7 Million colours (max)
    Viewing angle178° horizontal / 178° vertical
    Video inputsVGA / HDMI
    Audio InterfaceAUDIO IN/OUT
    Auto Brightness ControlYes (Optional)
    Temperature control systemIntelligent air conditioner or Fan is optional
    Operating temperature range-40°C to +55°C
    Storage Temperature0℃ to 50℃
    Operating Humidity5% to100%
    Input voltageAC 108-240 V, 50/60 Hz
    Power Consumption0.8kW (Mainly for AC starting)
    Waterproof EnclosureYes
    IP ClassIP65
    Enclosure materialMetal
    Front glass typeStrengthen 6mm AR glass
    TouchscreenInfrared Touchscreen or Capactive Touchscreen is Optional

    3, Before you decide to buy Outdoor LCD Display, please answer us following several question firstly.

    1) what's your requirements on screen brightness? This point refer to our cost, it is very important.What's the brightness for lcd screen you prefer ? Normal indoor digital signage you bought from us is only 350nits, However, for Outdoor Application, The screen usually require 800nits ~1500nits high brightness so that people can read clearly in sunlight. According to your actual application condition, Full outdoor or Semi-outdoor condition, we advise that you pick up 800nits ~ 1000nits or 1500nits.

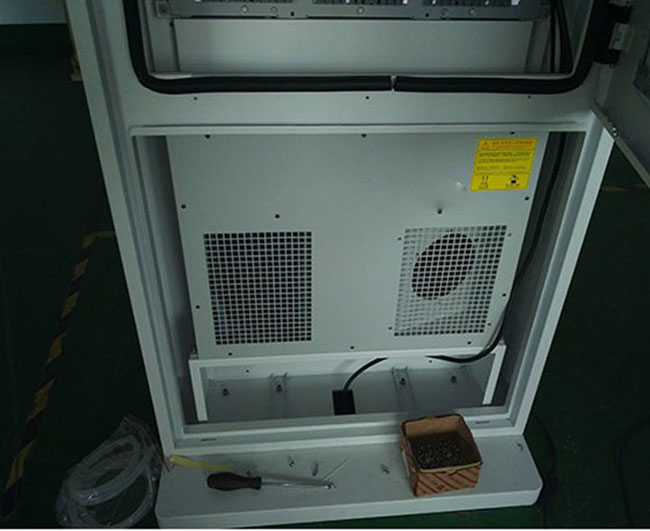

    2) When you require a high brightness for screen, we need consider cooling problem, If you only need 800nits for screen, we can put Fan inside for machine cooling, If you only need 1500nits for screen, we have to put intelligent air condition inside for cooling and heating.


    3) If you really need outdoor application, we need use AR bonding TM glass with anti-glare and insulate 99.3% UV for screen surface.


    4) Besides, The high brightness screen will consume plenty of electrical energy, we will install Ambient light sensor for auto dimming some to save energy efficiently when outdoor environment is dark. when the outdoor environment is very bright, I mean the noon, the screen would auto brighten so that the screen can be read clearly in sunlight.


    5 ) Do you need Touch function for Outdoor lcd screen?

    6) Do you have your own software ?If you need our software, we only can install our digital signage in machine for advertising purpose.


    Difference between good and bad outdoor systems is not only in " black spot " occurrence (well-known effect of LCD panel on surface temperature exceeding max level) and bad visibility, but also life time of integrated components which can degrade extremely fast especially in case of constant overheating of electronics.


    If we need to find one single biggest problem of outdoor LCD systems operation it will be heat generated by three factors: ambient air temperature, integrated high brightness LCD and electronics, and solar radiation. Remember, these systems are heavily influenced by powerful heat generators arising from ambient air, high brightness panels and huge solar load. For long life this problem needs to be managed as good as possible.



    As you have understood how helpful outdoor lcd display can be for your business, do not waste your time any more, and start your search to obtain high quality advertising display that can steal the attenof everyone in the market.


    Where you can find the best quality advertising display for your business ? This question has lost its relevance now since you have already reached the right place. We provide high quality outdoor lcd displays as per your specific requirements.


    If you have any other questions, please contact our salesman as soon as possible.
