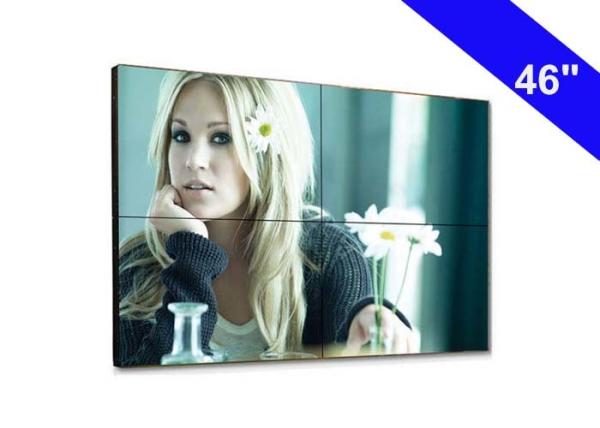

DID Original Panel 46 inch lcd video wall ultra narrow bezel 3.8mm
in 2x2
1, Main Features :
1), Samsung LED Panel, support 24hours continously displaying;
2), The gaps between two panels is 3.8mm;
3), Full hardware structure, no PC/CPU and operation system;
4), Easy installation, only fixed them together by metal bracket ;
5), Easy operation, we offer you free software to control video
wall;
6), Support RS-232 serial ports remote control;
7), Multipl signal input includes BNC, YPbPr, VGA, HDMI, RS232;
8), Panels splicing freely like 2X2, 3X3 etc.
2, Product introduction
46 inch DID video wall screen series features on only 3.8mm edge to edge
ultra narrow bezel with LCD technology making these the perfect
solution for a tightly mounted side by side security surveillance
video wall.The 46" series is designed with no buttons or lights on
the bezel, RS232 for computer control, 2 video BNC In/Out, and many
other inputs.Ideal solution requiring multiple monitors to be
installed on one wall or upgrading your CRT's to LED's.
3, Main Functions :
1), Integrating multiple signal decoding unit,a liquid crystal
drive unit, power supply unit and other parts, can flexible and
easily form a large screen display system.
2), All hardware made, professional mosaic chip design, no CPU,
operating system and virus infection risk, security and stability.
3), Multi-bus parallel processing,speed and powerful.
4), Integrated with multi-channel video sources : HDMI, DVI, VGA,
CVBS, USB, NETWORK(rj45), HDMI, DVI, VGA, Y/Pb/Pr, CVBS, USB.
5), Integrated with media codecs, support for H.264,MPEG-2, RMVB,
MKV, VC-1 and other encoding formats, support up to 1080P
resolution video.
6), Embedded 3D video high color separation circuit unit, 3D
digital noise reduction processing unit and the progressive
normalization frame rate conversion circuit unit.
7), Support edge compensation, reflecting the overall effect.
8), Can supply the underlying communication protocol,helping user
to construct large-screen systems with the third-party or
self-preparation software engineering flexibly.
9), Embedded smart upgrade firmware system.
10), Designed for high load and long time display applications,
support running 24 hours a day continuously.
4, Product Specification.
| Panel Specification |
| Model No | VD-D3D460BS |
| Panel Size | 3.8MM |
| Aspect Ratio | 16 : 9 |
| Active Display Area | 1018.08(W) x 572.67(H) |
| Backlight | LED |
| Max Resolution Support | 1920x1080(Max) |
| Color | 16.7M |
| Brightness(nits) | 450nits |
| Contrast | 3000 : 1 |

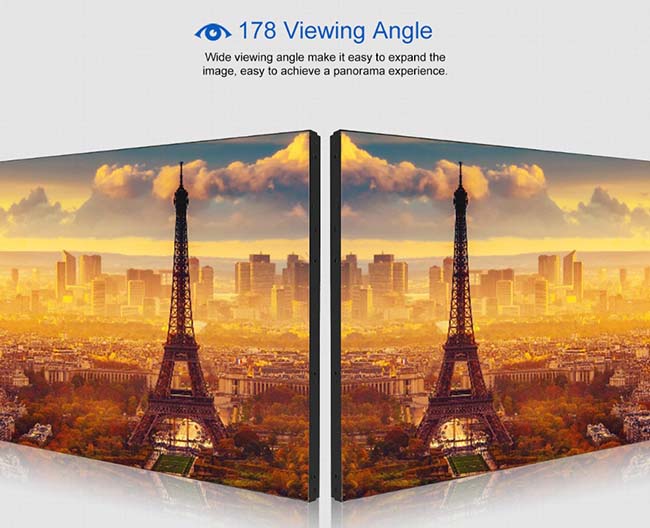

| Visual Angle (H/V) | 178°/178° |
| Response Time | <6ms |
| Life(hrs) | >50,000(hrs) |
| Video Wall Controller(Built-in each screen) |
| VGA input | 1 |
| DVI input | 1 |
| HDMI Input | 1 |
| Composite Video input | 2(BNC x 2) |
| Y,Pb,Pr/Y,Cb,Cr input | 1(BNC X 3) |
| Composite Video Output | 2(BNC X 2) |
| S-video | 2(BNC X 2) |
| Control signal input and loop out | RS232(RJ45-8) |
| Split Screen (Matrix is optional) | Support Picture in Picture(PIP/POP) |
| Video System |
| Color System | PAL/NTSC/SECAM |
| HDTV Mode | 480P, 576P, 720P, 1080P |
| OSD Display(Menu Language) | Chinese/English |
| Power |
| Power supply | AC 100V ~ 240V, 50/60Hz |
| Maximum Power Consumption | <250W |
| Standby Power Consumption | <3W |
| Temperature |
| Working Temperature | 0° ~ 50° |
| Storage Temperature | 20° ~ 60° |
| Working Humidity | 20%~80% |
| Storage Humidity | 20%~80% |
| Installation System |
| Installation | With wall bracket for each single unit lcd |
| Gross Weight | 25kg |
| Dimension | 1025.65X579.84X126.73 mm |
| Accessories |
| Split LCD Unit | Yes |
| Bracket | Yes(wall bracket for each single unit lcd) |
| Power cable | Yes |
| Remote controller | Yes |
| Video wall controller | Yes(Built-in each screen) |
| Splicing software | Yes |
